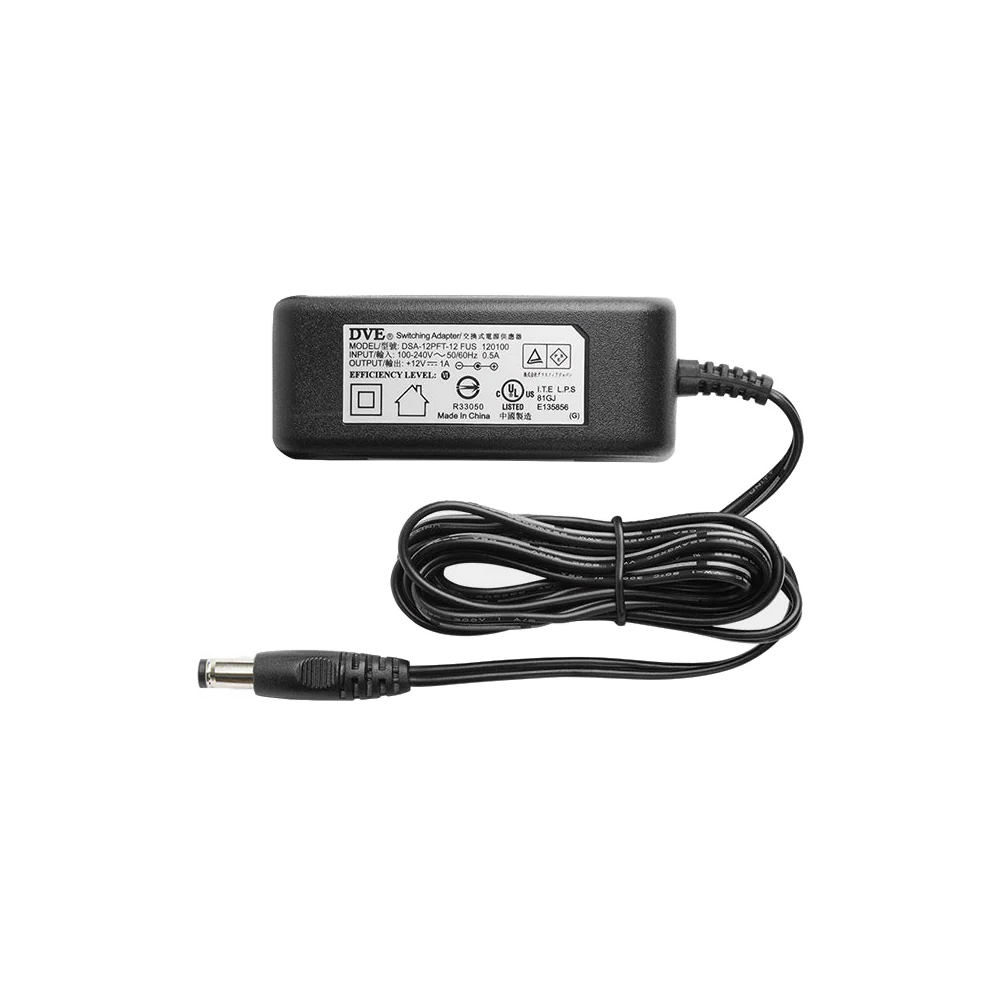

Power Supply Adapter 12V | PS-12VDC-1A

12V Power Supply Adapter

This adapter features an impressive minimum efficiency of 77.75% @ 115V ac input and output while at full load. Over-Current/Short Output Protection: The power supply will withstand a continuous output short. Normal operation will resume when the short is removed.

Lead Free & RoHS compliant for added safety. Note: Standard power supply tip sizes are (OD - Outside diameter, ID - Inside diameter): 5.5mm OD/2.5mm ID, 5.5mm OD/2.1mm ID This power supply comes with a 5.5mm OD / 2.1mm ID tip.

 Features:

• Input: 100-240V ~ 50/60Hz 0.5A
• Output: 12V 1A (1000mA) / 12W
• Output Voltage Range: 11.4V min. / 12.6V max.
• Cord Length: 56in.
• Connector Size: 5.5mm x 2.1mm (10mm long)
• Minimum Efficiency: 77.75% at 115 VAC Input and Full Output Load

12V Power Supply Adapter Specifications:

Input Voltage	100-120V
Input Voltage Frequency	50Hz, 60Hz
Output Voltage	12 Volts
Output Voltage Range	Minimum 11.4V, Maximum 12.6V
Output Current	1Amp
Minimum Efficiency	77.75% @ 115Vac input and output at full load
Connector	5.5mm
